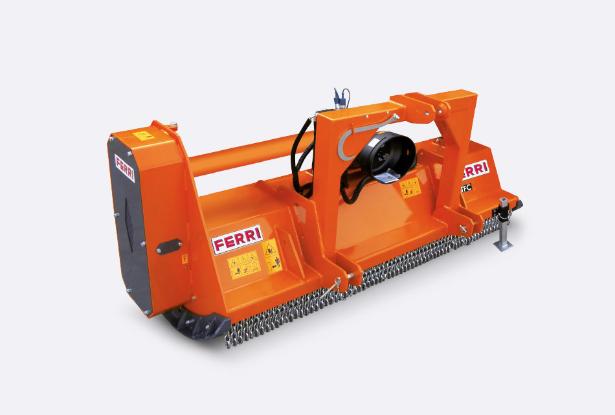

The range of powerful forestry mulchers series TFC is specifically designed for the maintenance of set-aside areas, overgrown bushes, fire roads clearance, maintenance of embankments and railways side areas covered with heavy shrubs and so on, basically in all situations which can not be addressed with traditional agricultural shredders. The main features of these machines are: frame made of high yeld steel, subframe made of wear-resistant steel (Hardox 400), a very versatile rotor with fixed tooth or APEIRON rotor with fixed tools and tungsten carbide inserts with steel profile ensure a cutting diameter of up to 25 cm. The strong side plates increase the tightness of the main body, thus avoiding possible cracks due to tearing and torques. Other important details are: hydraulic cylinder for opening the hood, 2 thick counter-knives of 20 mm, wide side skids, side transmission with belts, front guards with 2 rows of chains and so on..

Working Width (m): 1.8 - 2.2
Max. cutting diameter (cm): 25 - 25
Total Width (m): 2,00 - 2,40
Rotor + Cutting Tools Diameter (m): 0,50
Machine Weight (kg): 1530 - 1872
Tractor Power (HP): 100 - 140

Strengths

HARDOX 400 LINING
HARDOX 400 LINING
APEIRON ROTOR AND TUNGSTEN TIPPED TOOL
APEIRON ROTOR AND TUNGSTEN TIPPED TOOL
FRONT PROTECTION WITH HIGH RESISTANCE TWO-ROWS CHAINS
FRONT PROTECTION WITH HIGH RESISTANCE TWO-ROWS CHAINS

Equipment

Standard equipment
3 point ISO universal linkage CAT 2.
1000 RPM PTO gearbox with overrun clutch.
Hardox 400 lining.
Single transmission with belt drive.
Adjustable belt tensioners.
PTO 1 3/8” = Z6.
Double row of counter blades.
Front and rear guards with double chains.
PTO shaft with shear bolt.
Accident prevention protections according to EC directives.
Optional
Mechanical push-over bar

|
